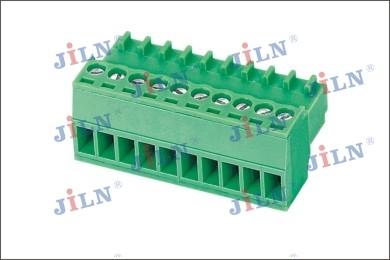

M1.5 PA66 JL15EDGFY Pluggable Terminal Blocks AC1250 Steel Manufacture
Specifications:
| Rated Currency: |
125V,4A |
| Dieletric Strength: |
AC1250V/1 Minute |
| Insularion Resistance: |
500mΩ Min |
| Contact Resistance: |
20mΩ Max |
| Screw Torque: |
- |
| Wire Range: |
28-20AWG 4.0M㎡ |
| Strip Length: |
8mm |
| Term. Range: |
-40℃~+105℃ |
| Max Solering |
+250℃.5S |
| Housing Material: |
PA66(UL94 V-O) |
| Contact: |
Steel, Tin Plating |
| Clamp: |
Brass/Steel, NI Plating |
| Wire Protector: |
Brass,Ni Plating |
| Screw: |
- |
Company history:
In 2011, the company introduced ERP management system.
In September, 2012 the main products including pin, female header connector, Terminal Blocks, Box Header Connector Ejector Header and IDC Machine Pin DIN41612 Flat Cable series.
In August, 2014 had passed 3C Certification.
In December,2014, our company won seven product patent, passed the HI-TECH enterprise of Shenzhen and got the certificate of honor at the same time.
In June 2015, JILN is the vice chairman of Shenzhen connector association and attained the “good faith enterprise”
In July of 2016 UL authorized laboratory was established.
Companies adhere to the quality as the center of the business philosophy, but also a. Thttaches great importance to environmental protectione company passed the ISO9001 quality management system and ISO14001 environmental management system, Authentication, our laboratory has a large number of advance detection instruments and equipment, access to UL, VDE,CQC,CBSGS,ROHS and other certificates.
What’s your capability ?
JILN has high speed punch over 30sets, molding 800 sets, Automatic Assemble Machine 53 sets, CCD reel packing machine 15 sets etc ,which facilities can support more than 6K types of connectors to produce, and near to 4 millions post capacities per day .
